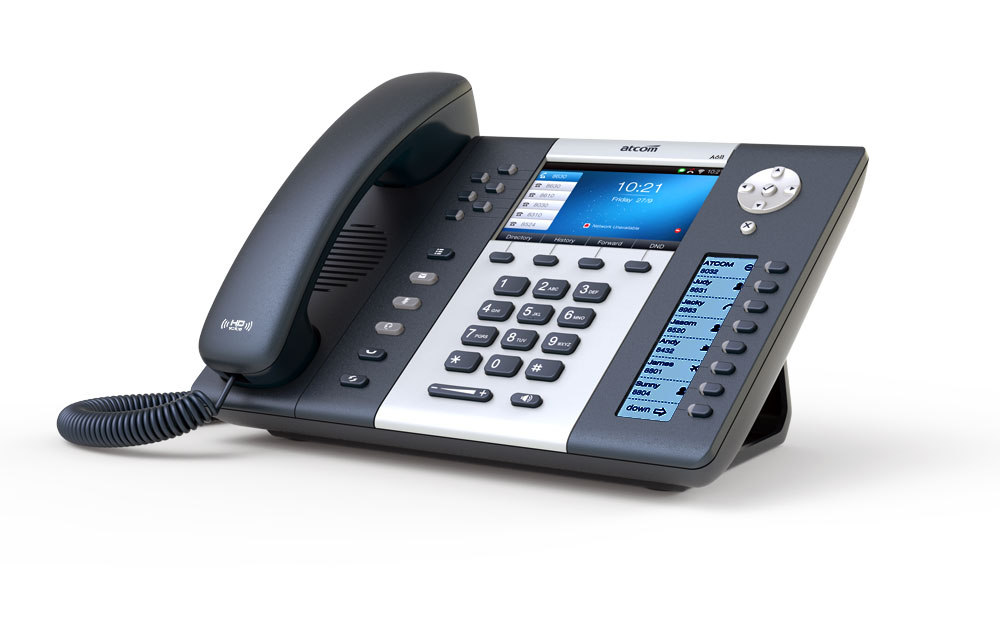

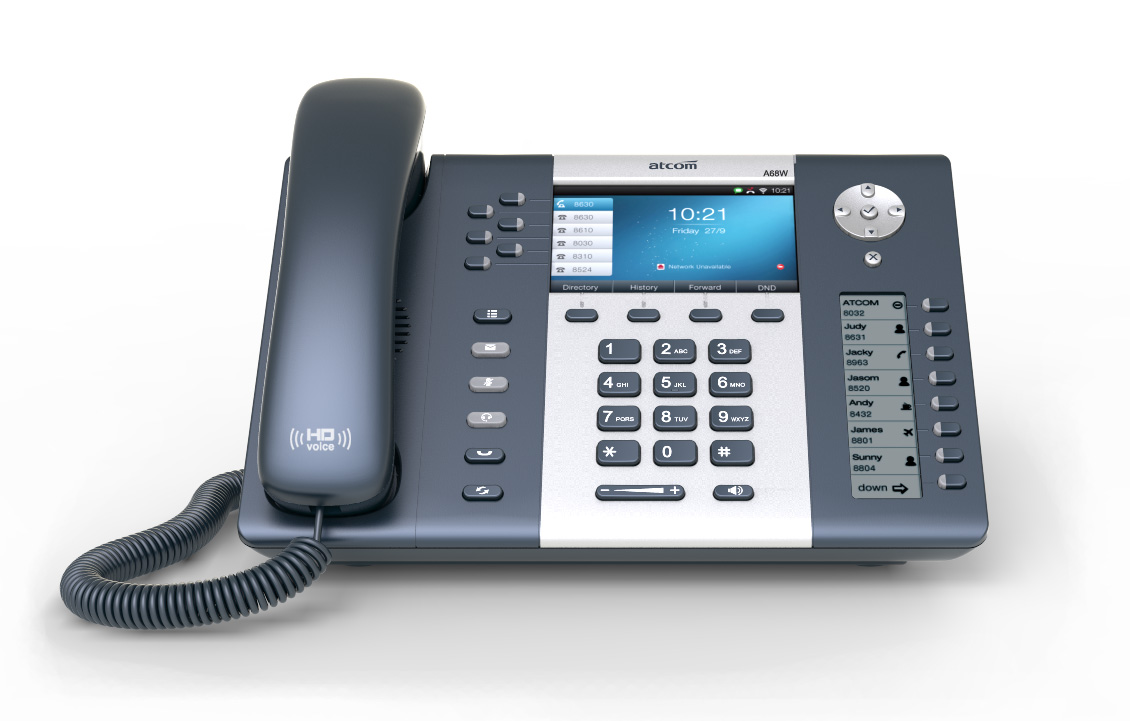

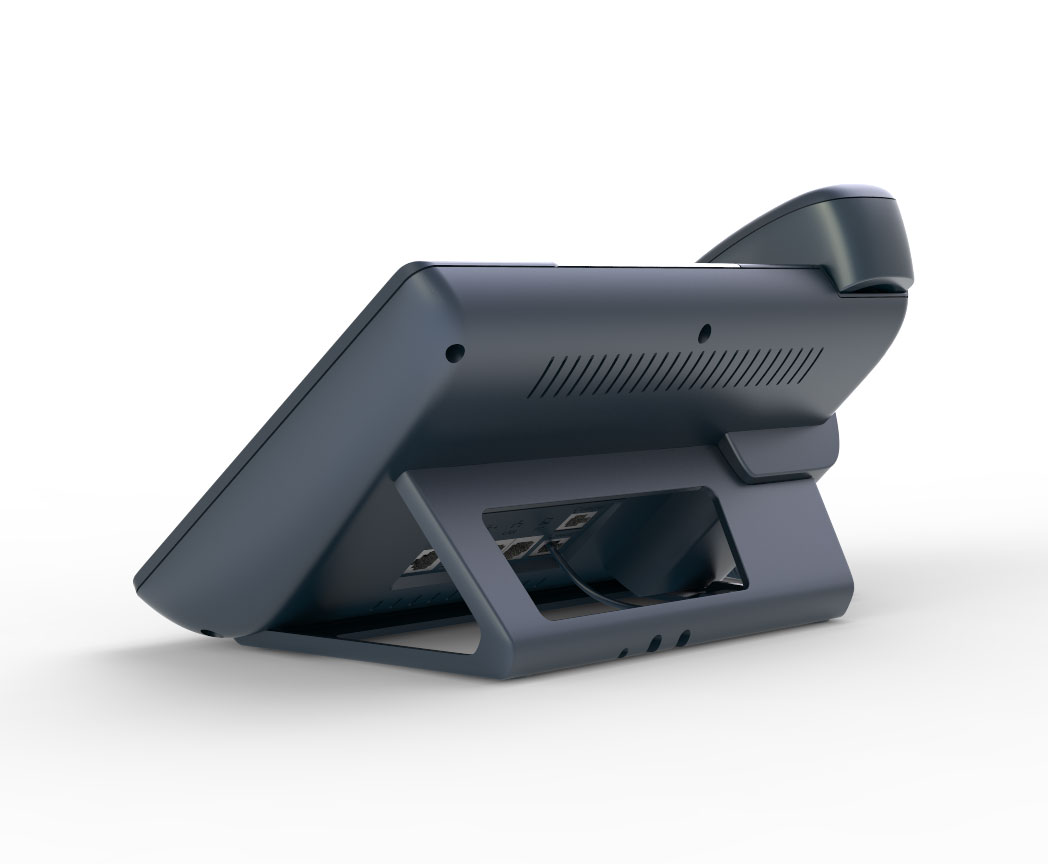

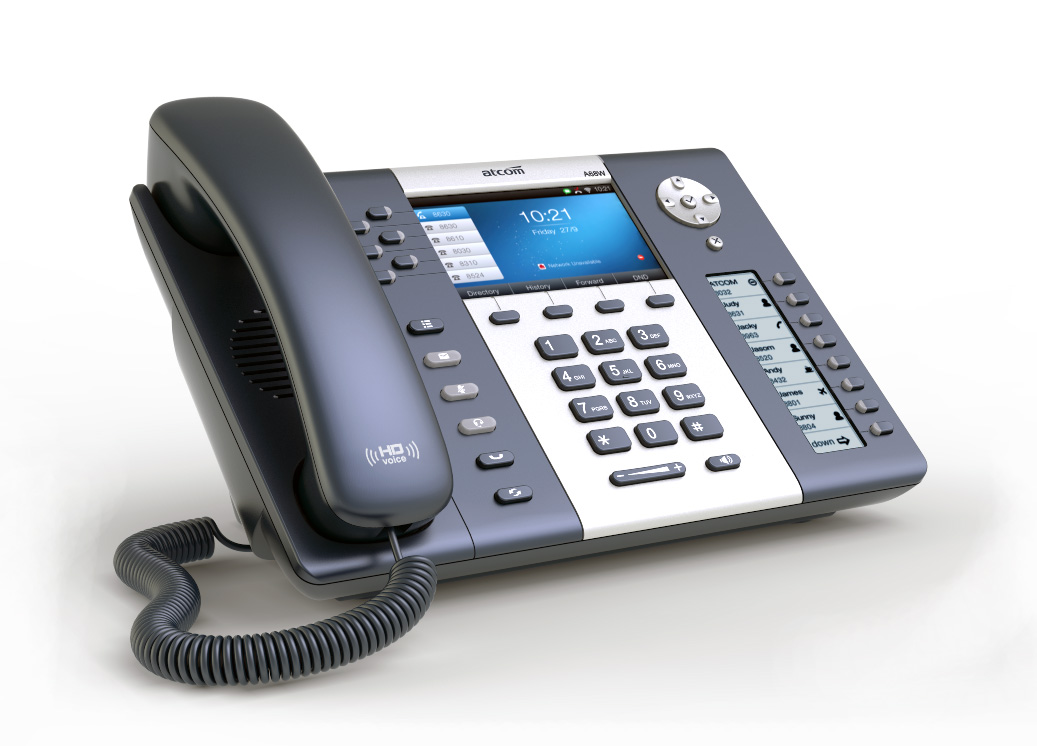

Atcom A68W Executive level IP phone

Dual screen mode maximize your convenience and efficiency of working


Dual screen IP phone is the flagship products in IP telephone in the world. 4.3 inch TFT color display enhance the visual image of your desktop
innovative paperless BLF+BLA maximize your working efficiency , the crystal clear broadband voice ( meet TIA920 standard) bring you the
revolutionary working experience
Category:

Description

2D graphics accelerator design improves the UI operation very smoothly



Visualized LCD for BLF maximize your working efficiency



Top level voice quality



WIFI + cable connection enable flexible deployment

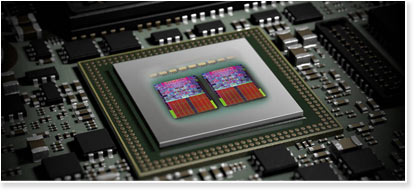

Dual core CPU is the guarantee of high quality IP phone




One core for instruction process and the other core for voice
decoding greatly improve the sound quality and make it possible
to run more complicated applications fluently.


Specification

Basic functions
4.3″ TFT LCD, 480*272 Pixel, 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute, DND, Local 3-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (upto 400 entries), Direct IP call without SIP proxy, Black list, White list, Dialed/Rece ived/Missed/Forward call (total 400), Call Center Headsets mode,support EHS headset


Management
Configurable through web interface/phone, Provisioning: Auto-provision via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, Redirection and Provisioning Service(RPS)

IP PBX Features
Intercom, Paging, Call pickup, Call park, Anonymous call, Anonym ous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording


Physical

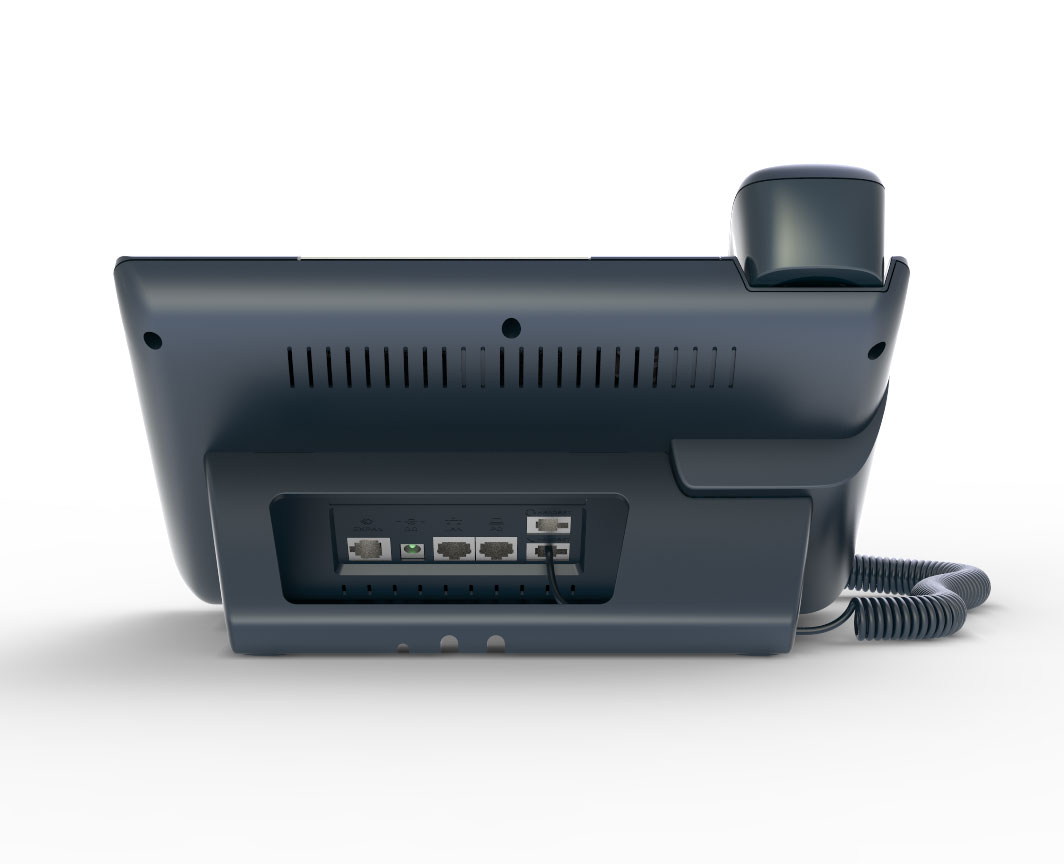

Power Interface: DC 5V-1A, PoE power supply: IEEE 802.3af Class 2 2x RJ45 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack

Mult-language
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish ? Hebrew


Keys Features
1 status indicator, 4 line keys, 4 soft keys, 5 navigation keys, 1 vo lume keys, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free)

Advanced Features
LDAP, Microsoft active directory(AD) server, XML remote phonebook,TR069,Action URL


Temperature and Humidity
Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90%

Audio Features
10( own ring tone,+ custom ring tone article), 8 volume adjustable + Mute mode, Narrowband codec: G.711(a/?), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC


Management
Configurable through web interface/phone, Provisioning: Auto-provision via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, Remote Provision Service(RPS)

Network Features
LAN / PC: support bridge mode, Open VPN, IPv4&IPv6,SIP connection mode: Proxy mode, and P2P mode, Support DNS SRV (RFC3263). NAT transverse: STUN mode. DTMF: In-band, RFC2833, SIP INFO, Support QoS, HTTP / HTTPS web server, Package tracing export, Syslog


Package
Qty/CTN: 10 PCS , G.W/CTN: 16KG, Giftbox size: 29 0m m(L)*200mm ( W ) *120mm(H) Carton Meas: 615mm(L) *405mm(W) *310mm(H)

WiFi Features(A68W only)
IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS, IEEE802.11i (WPA, WPA2) authentication


Certifications
CE: EN60950 FCC: Part15

Security
VLAN, LLDP, IEEE802.1X, TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration files, Phone lock, User and administrator level access control


Models


A68/A68W Models PoE Wifi Gigabit
A68W Y Y Y
