Description
Specification
Hardware Specification | Chipset: Qualcomm QCA9531; 650Mhz CPU DDR: 64MB; Flash: 16MB |
Antenna | Built in 2*3dBi Antenna |
Wireless Standard | IEEE802.11 b/g/n |
RF Parameters | Output Power (Max): 80mW (19dBm) Receiving Sensitivity (Max): -96dBm Frequency: 802.11 b/g/n: 2.4GHz-2.4835GHz |
Modulation Mode | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps MIMO-OFDM: MCS 0-15 |
Transmission Rate | 11b: 1, 2, 5.5, 11Mbps 11 g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 11n: MCS0-MCS15 (20MHz and 40MHz Analog Bandwidth) 20MHz: 144.4Mbps 40MHz: 300Mbps |

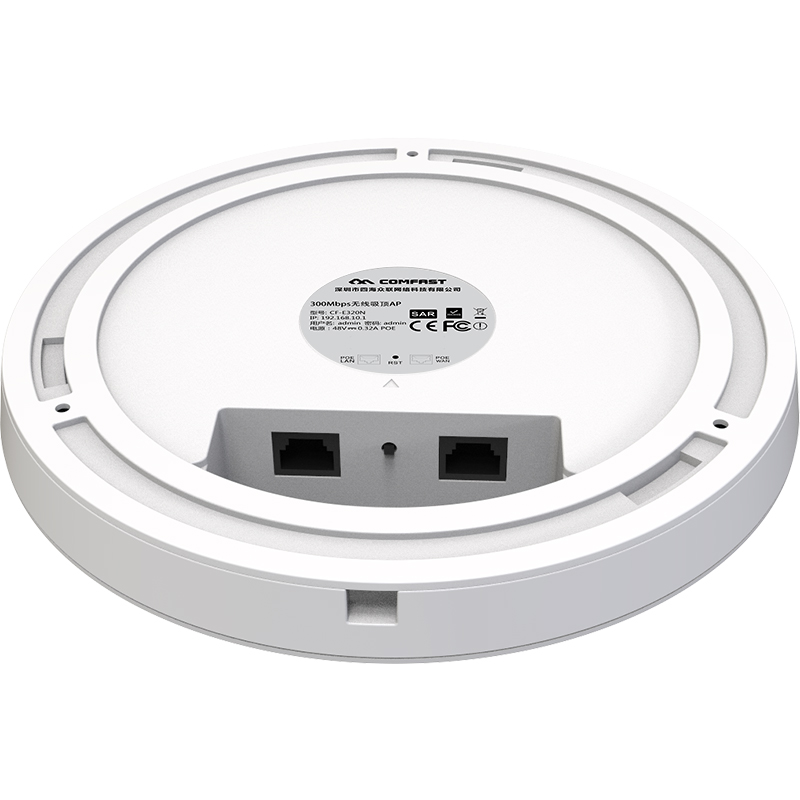

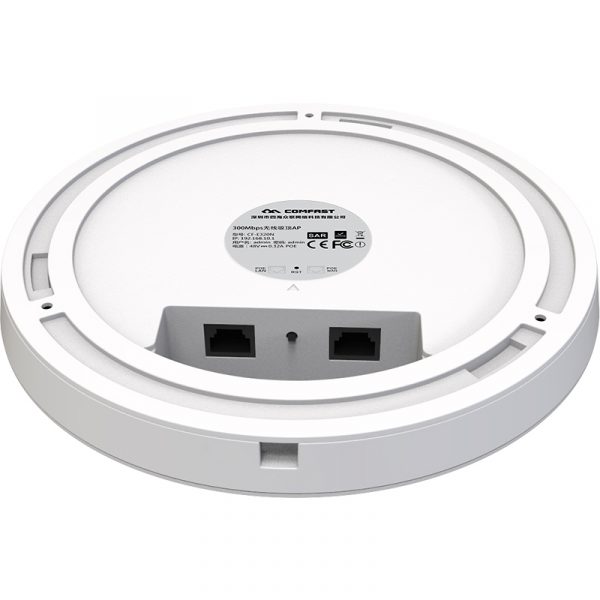

Physical Ports | 1* 10/100Mbps WAN RJ45 Ethernet port; Support POE Power Supply 1 10/100Mbps LAN RJ45 Ethernet port; Support POE Power Supply 1 RESET / WPS Button |
Indicator | Three Color Indicator |
Power | Power Supply: 802.3af/802.3at POE Power Supply(0-1 00m) Power Adapter: 48V 0.32A POE Power Adapter(Configured) |
Power Consumption | <8W |
IP Index | IP41 |
MTBF | >250000H |

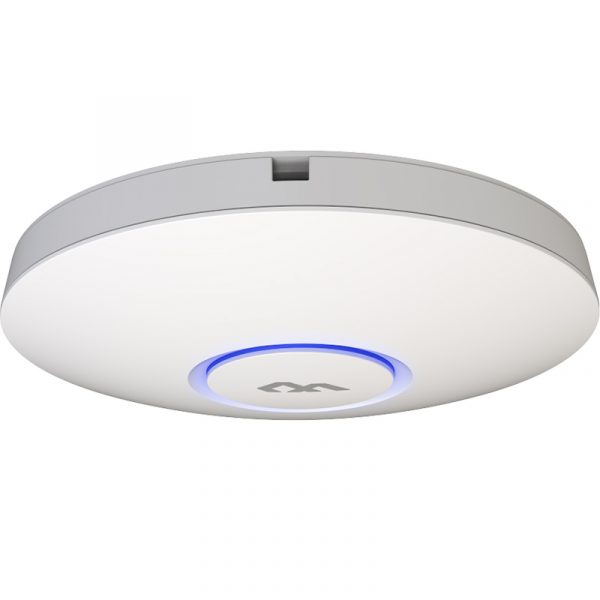

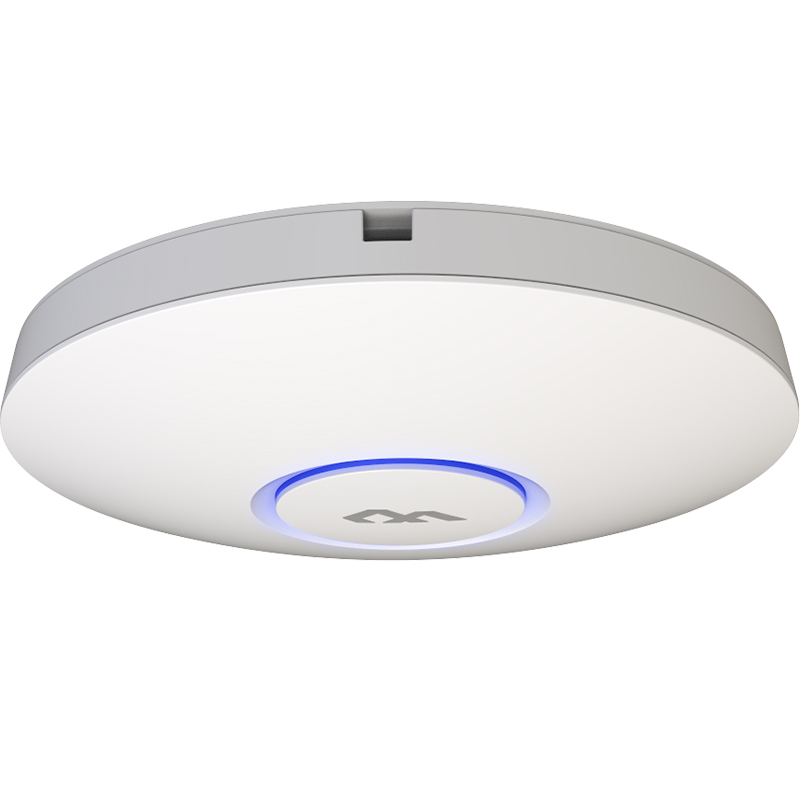

Installation Way | Ceiling-Mounted, Wall Mounted |
Case | Plastic Case (Imported ABS Material) |
Physical Features | Size: 200*200*18mm, Weight: 0.32Kg |
Working Environment | Working Temperature: -10'C-65C Storage Temperature: -40'C-70C Operation Humidity: 10%-90%RH Non condensing Storage Humidity: 5%-90%RH Non condensing |
