Specification

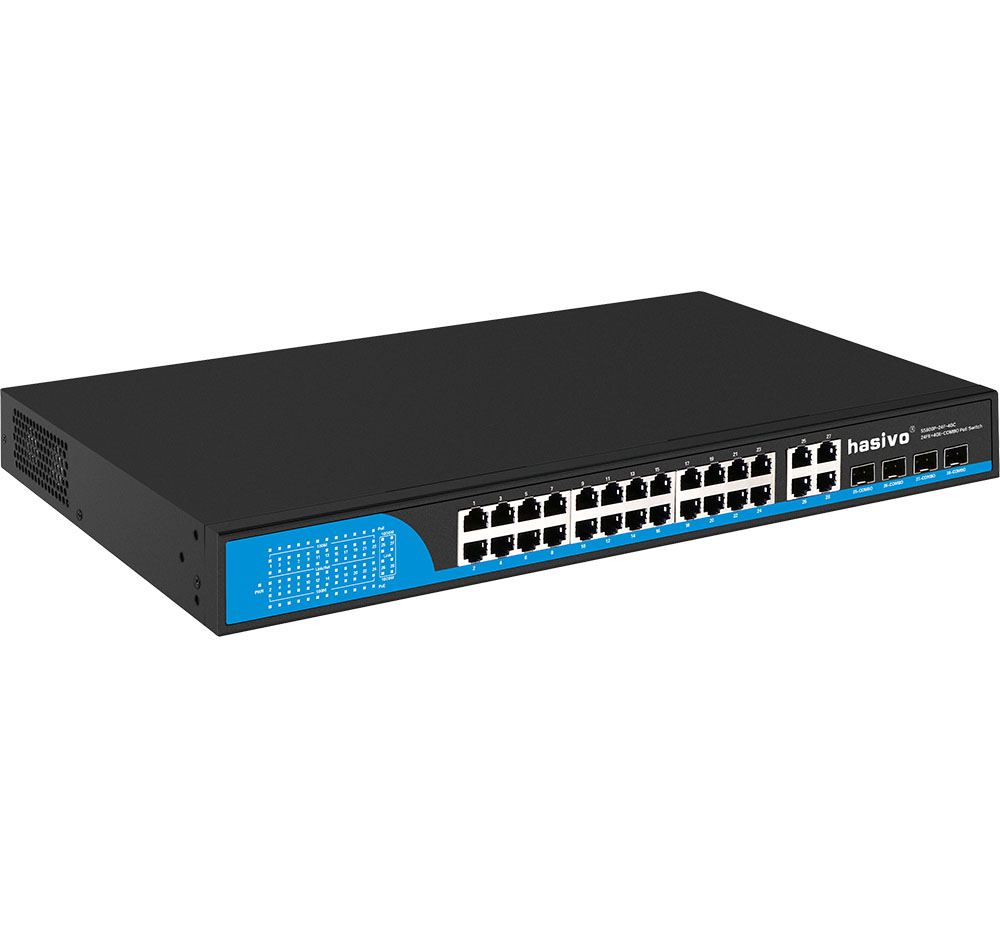

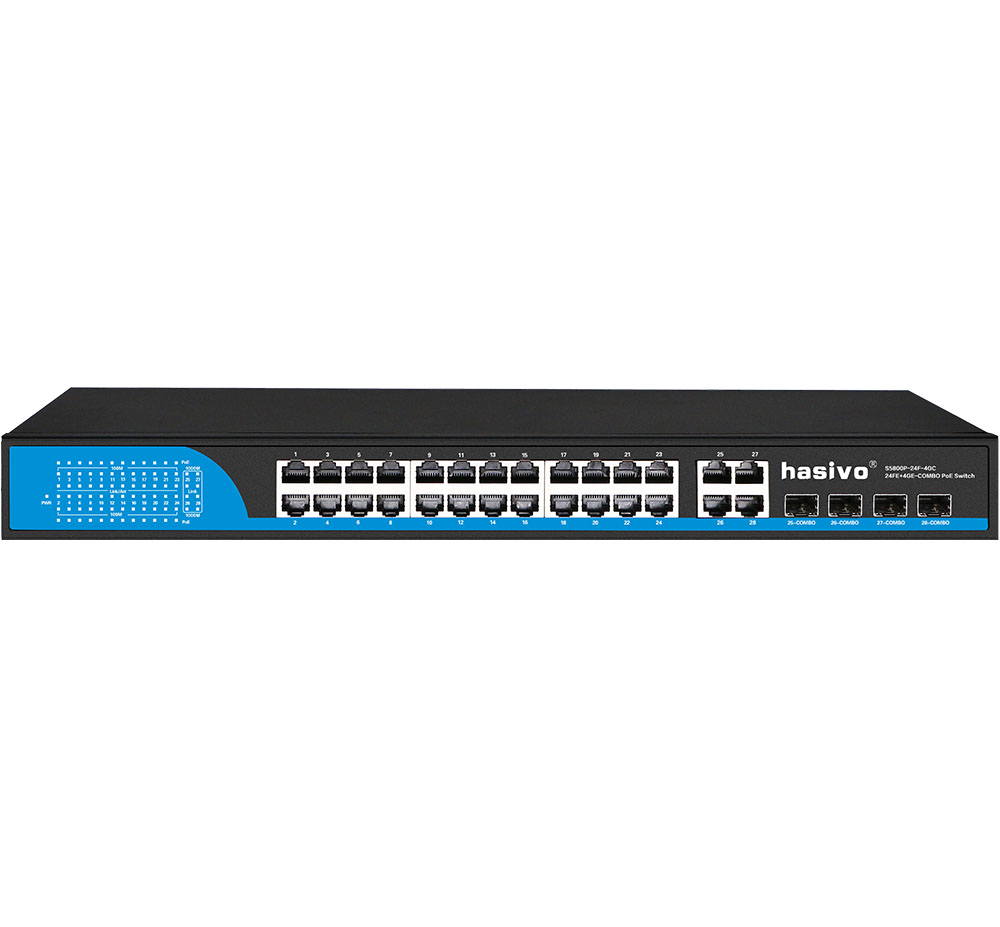

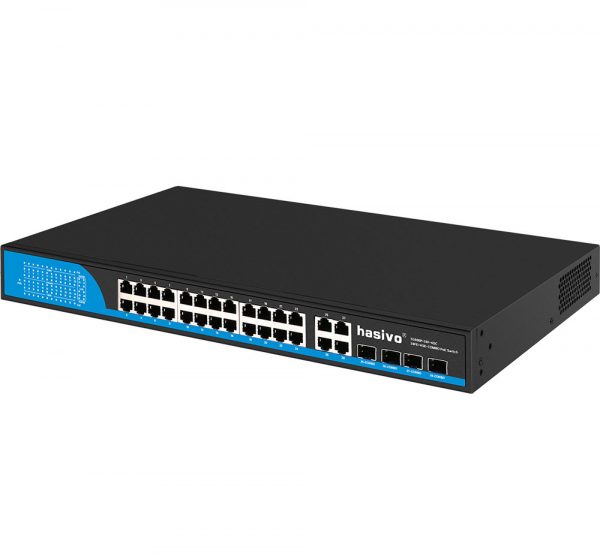

| Model | S5800P-24F-4TC |
| Product | 24+4 Fast Ethernet PoE Switch |
| Fixed Port | 24*10/100Base-TX PoE port（Data/Power） 4*COMBO |
| PoE Ports | 1-24 port supports PoE (first port outputs HiPoE_60W) |
| Function | N:(Standard normal) V:(Port isolation) S:(Super mode）（specific port refers to user manual） |
| Network Protocol | IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab 1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X IEEE802.3af/at |
| PoE Standard | IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT（X）Auto |
| Transmission Mode | Store and Forward (full wirespeed) |
| Bandwidth | 16Gbps |
| Packet Forwarding | 9.21Mpps |
| MAC Address | 8K |
| Buffer | 4.1M |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Power Pin | Default 1/2(+)，3/6(-)； Optional order 4/5(+)，7/8(-) |
| Single port power | Average 15.4W；MAX 30W |
| Total power/Input voltage | MAX 400W （AC100-240V 50/60HZ） |
| Watt | Standby Power Consumption：≤10W； |
| LED Indicator | PWR:Power LED(over-power LED) 1-24:(Link LED=10/100M Link、1000M=Gigabit Link） 25~28:(COMBO LED) |
| Power Input | Built-in power AC：100～240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size（L*W*H） | 440mm*290mm*45mm 515mm*375mm*95mm |
| N.W/G.W（kg） | 3.5kg/4.3kg |
| Installation | Rack-mount（optional machine hanger spare parts） |
| Lightning protection level | 3KV 8/20us； IP30 |
| Certificate | CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS； |
| Warranty | Whole device for 1 year(Accessories not included) |
