Description
Specification
| Model | S1200P-8G-2G |

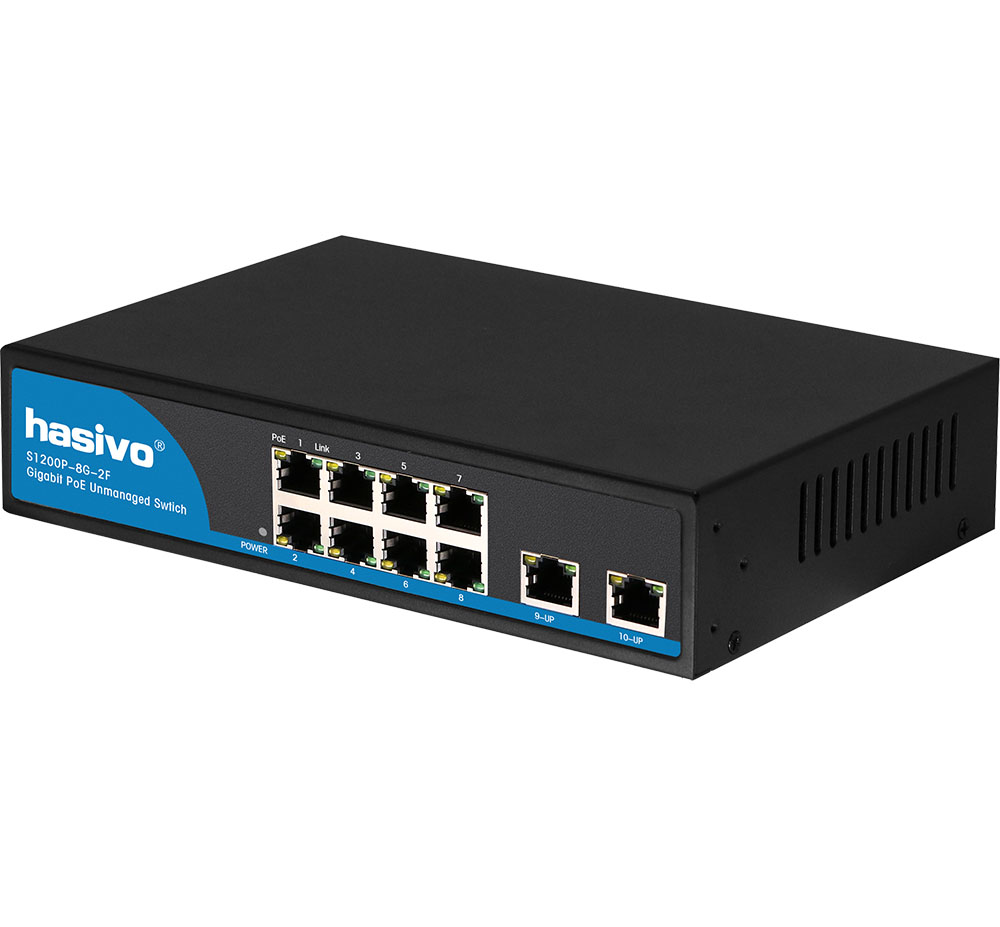

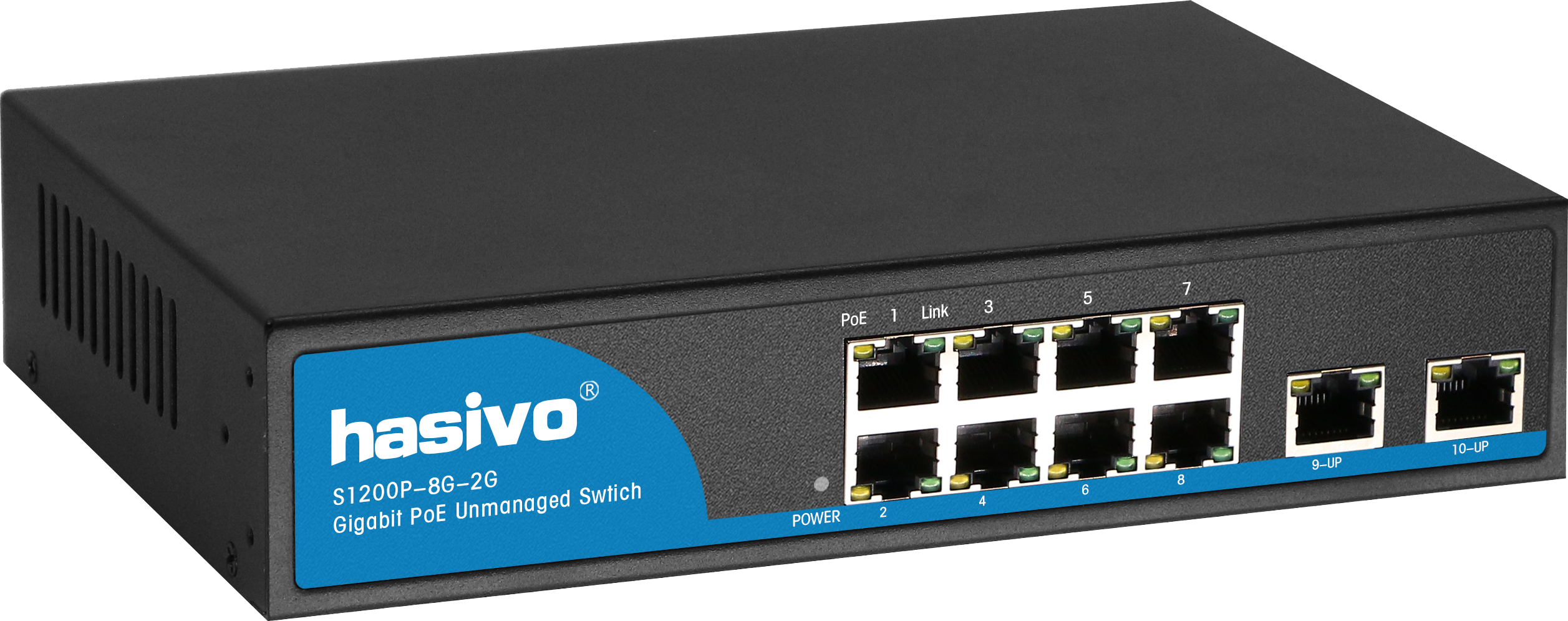

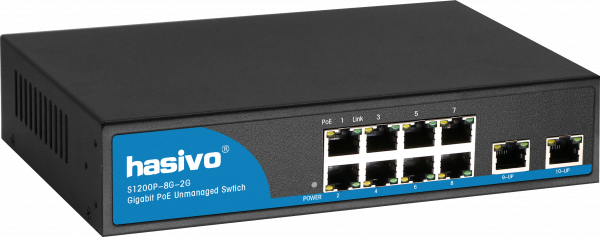

| Product | Full Gigabit 8 Port POE Switch |
| Fixed Port | 8*10/100/1000Base-TX PoE port（Data/Power） 2*10/100/1000Base-TX uplink RJ45 port (Data) |
| PoE Ports | 1-8 port supports PoE(first port outputs HiPoE_60W) |
| Function | N:(Standard normal) V: (Port isolation ) S:(Super mode)(specific port refers to user manual) Ai version:PoE auto execution 、 detection and resets fault device,when PoE is on. |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3af/at |
| PoE Standard | IEEE802.3af/ AI version:first port supports HipoE |
| Port Specification | 10/100/1000BaseT（X）Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 20Gbps |
| Packet Forwarding | 14.44Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) |
| Power Pin | Default 1/2(+)，3/6(-)；Optional order4/5(+)，7/8(-) |
| Single port power | Average 15.4W；MAX 30W |
| Total power/Input voltage | MAX 150W （AC100-240V 50/60HZ） |
| Watt | Standby Power Consumption：≤8W； |

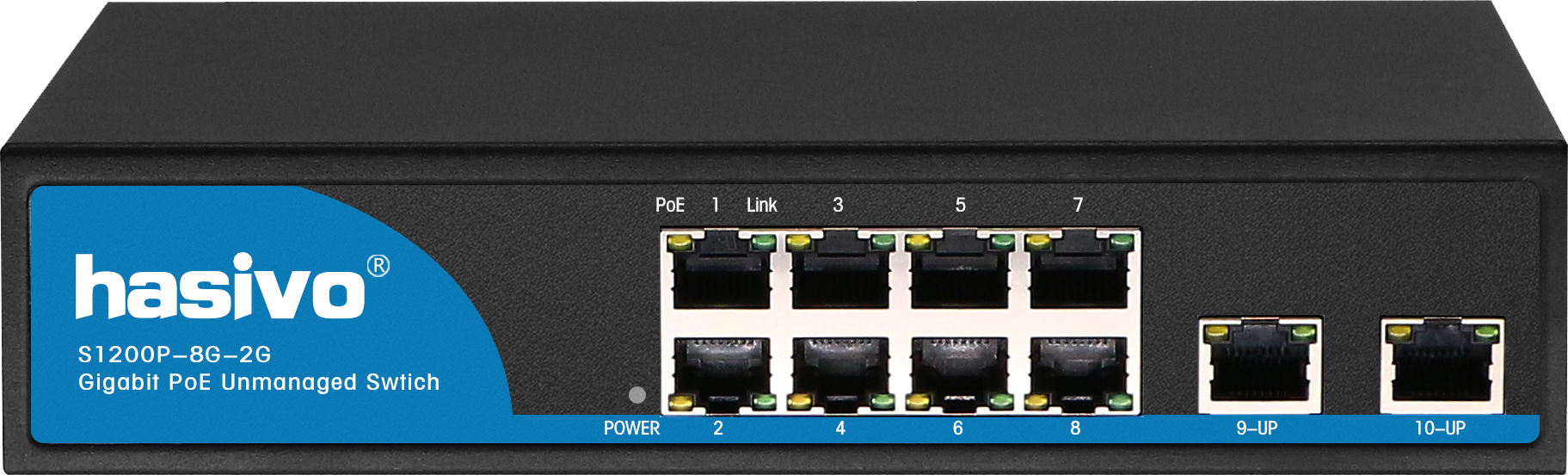

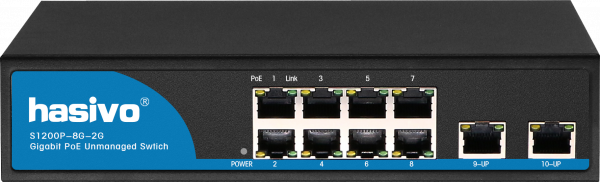

| LED Indicator | POWER:Power LED(Over-power LED) Uplink:(Link LED=10/100M Link、1000M=Gigabit Link) Port:(Orange=PoE LED+Green=Link LED) |

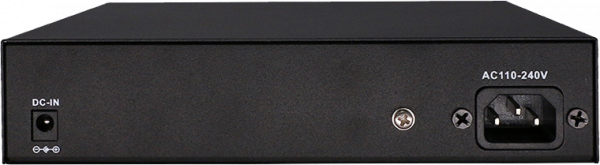

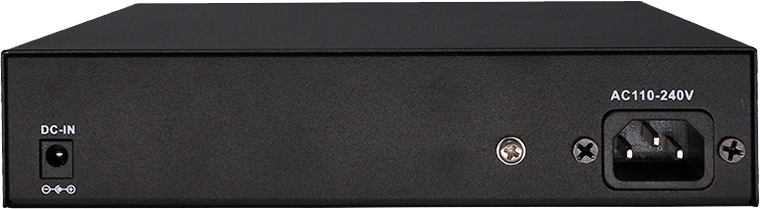

| Power Input | Built-in power AC：100～240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size（L*W*H) | 210mm*150mm*35mm 270*mm220mm*68mm |
| N.W/G.W（kg） | 1.1kg/1.4kg |
| Installation | Desktop (optional wall +machine hanger parts) |
| Lightning protection level | 3KV 8/20us； IP30 |
| Certificate | CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS； |
| Warranty | Whole device for 2 years(Accessories not included) |
