Specification

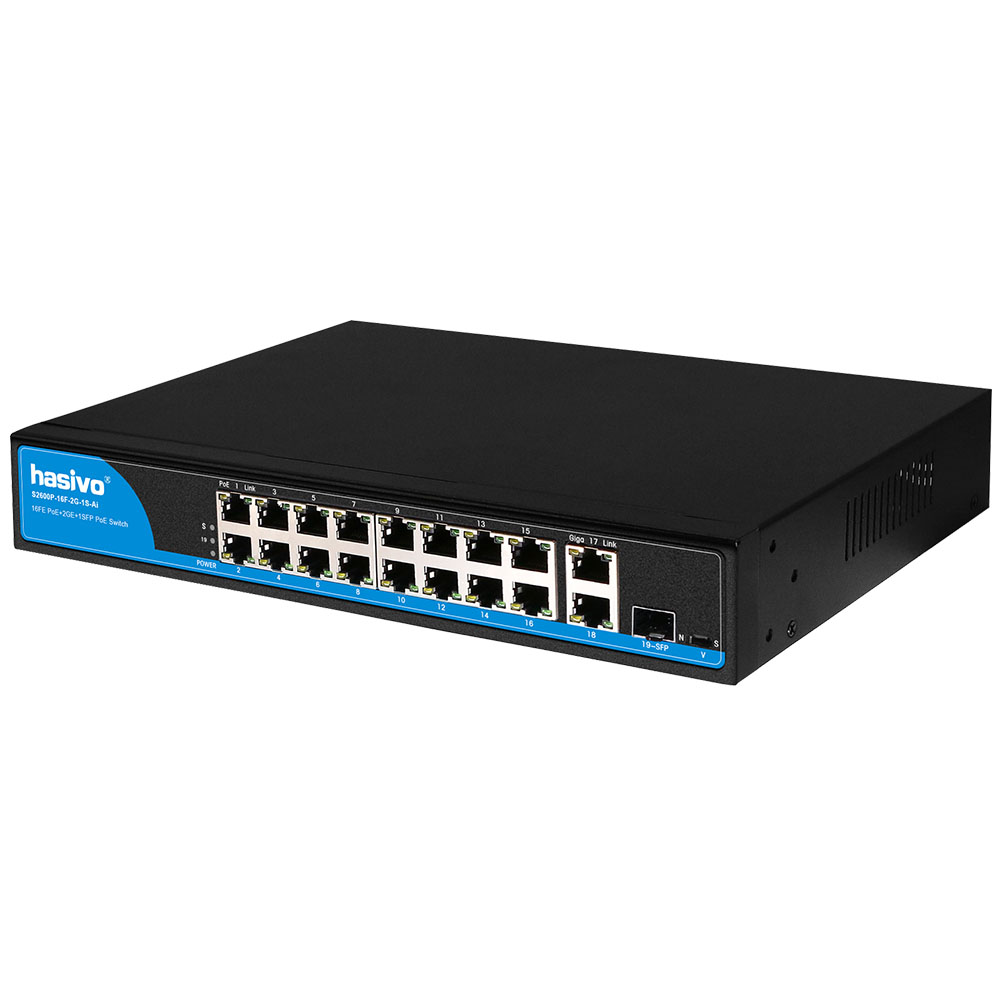

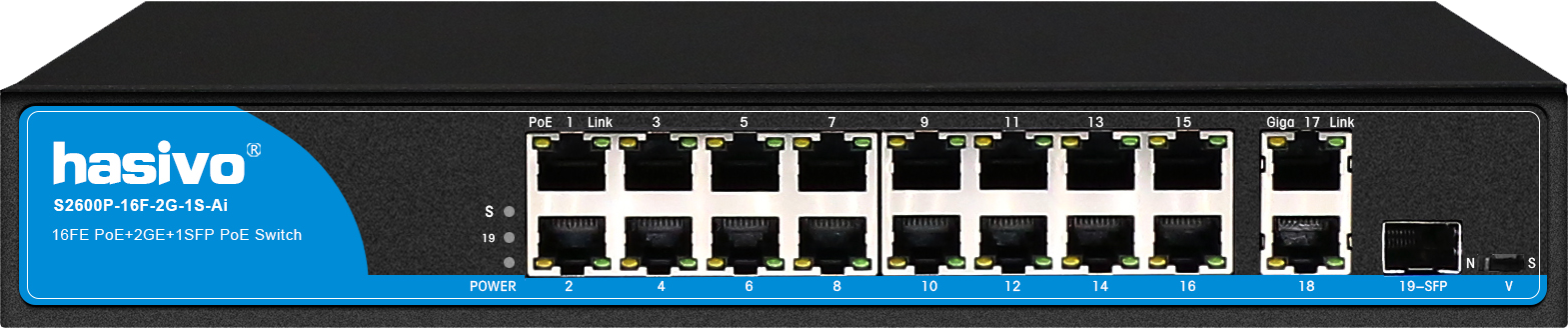

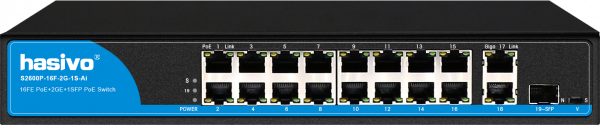

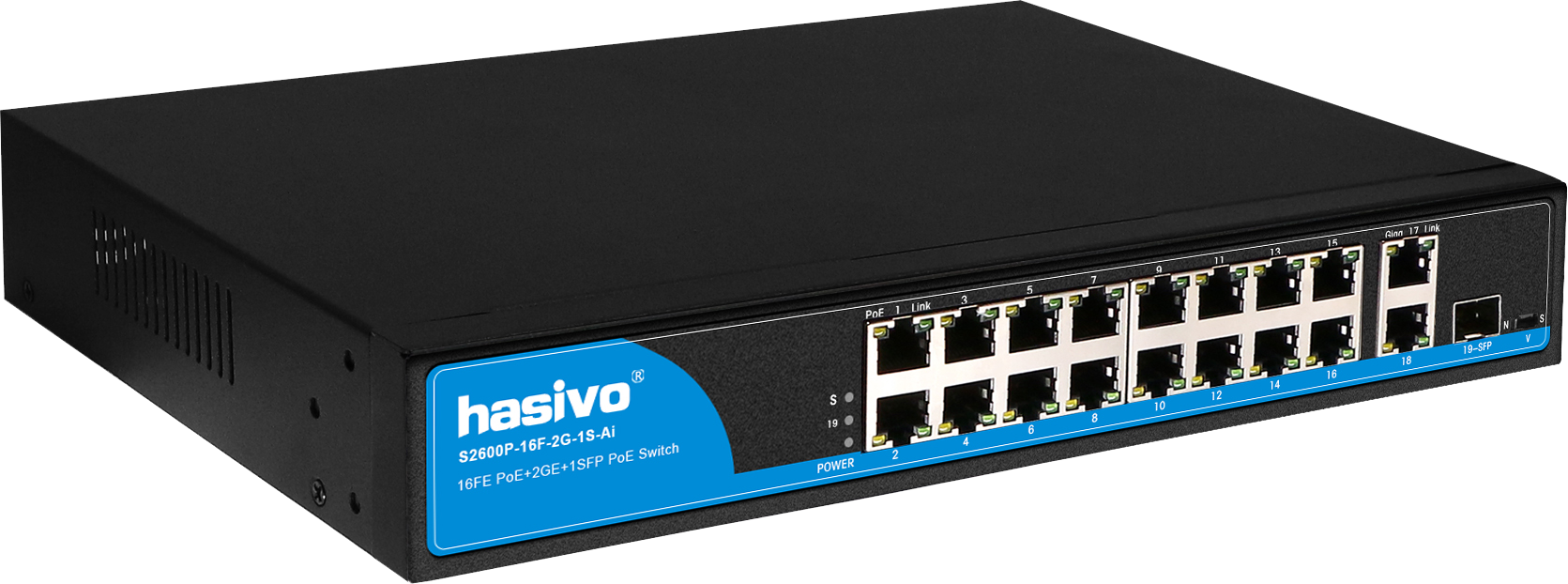

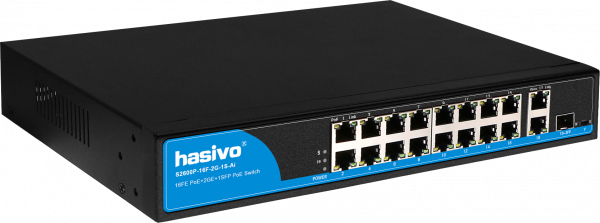

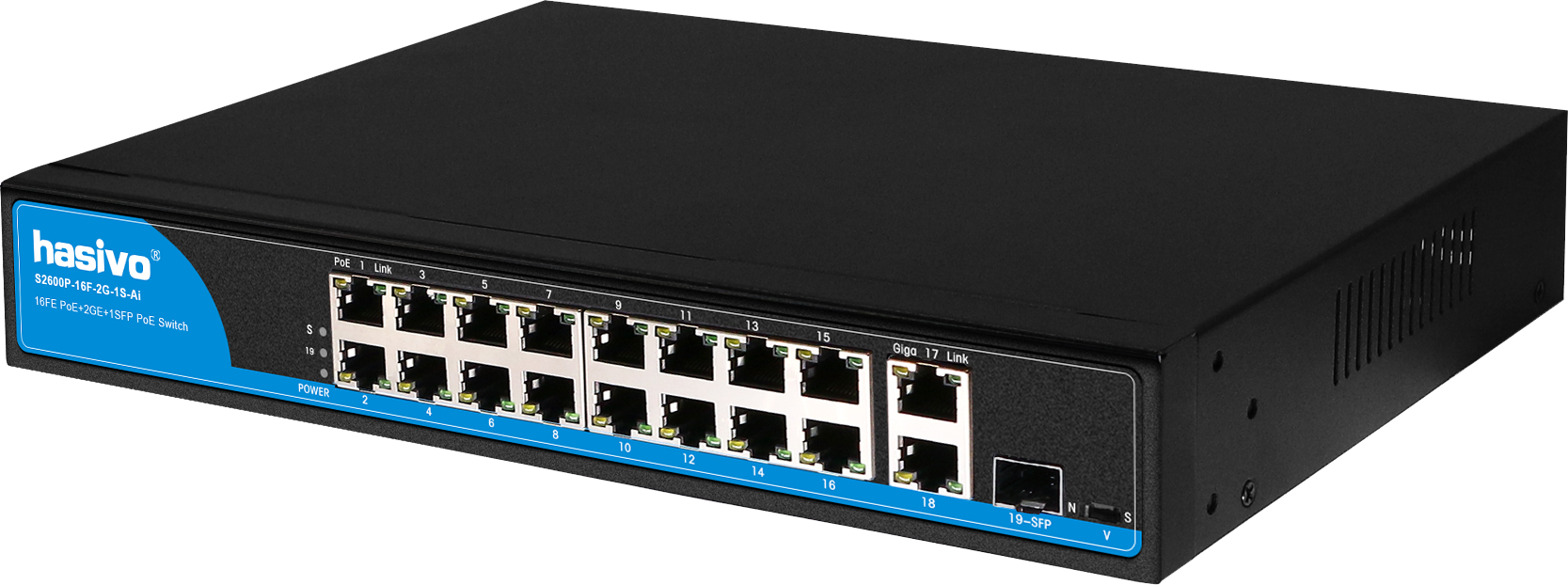

| Model | S2600P-16F-1G-1TC |
| Product | Hybrid Gigabit 16+1+1combo PoE Switch |
| Fixed Port | 16*10/100Base-TX PoE port?Data/Power? 1*10/100/1000Base-TX uplink RJ45 port (Data) 1*10/100/1000Base-TX uplink RJ45 port /1*1000M SFP COMBO |
| PoE Port | 1-16 port supports PoE |
| Function | N:(Standard normal? V:(Port Isolation) S:(Super mode)?specific port refers to user manual? Ai version:PoE auto execution, detection and resets fault device, when PoE is on. |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at |
| PoE Standard | 1-2port Support IEEE802.3af/at/PoE++/BT 3-16port Support IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT?X?Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 24Gbps |
| Packet Forwarding | 7.68Mpps |
| MAC Address | 4K |
| Buffer | 4M |
| Transmission Distance | 10BASE-T ?Cat3,4,5 UTP(?250 meter) 100BASE-TX ?Cat5 or later UTP(150 meter) 1000BASE-TX ? Cat6 or later UTP(150 meter) 1000BASE-SX:62.5?m/50?m MMF(2m~550m) 1000BASE-LX:62.5?m/50?m MM(2m~550m) or 10?m SMF(2m~5000m) |
| Power Pin | Default 1/2(+)?3/6(-)?Optional order 4/5(+)?7/8(-) |
| Single Port Power | 1-2 each port MaX 90 3-16 each port 15.4W?MAX 30W |

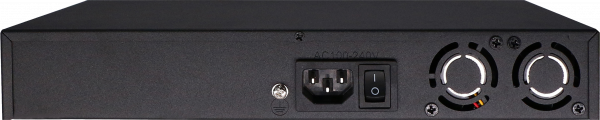

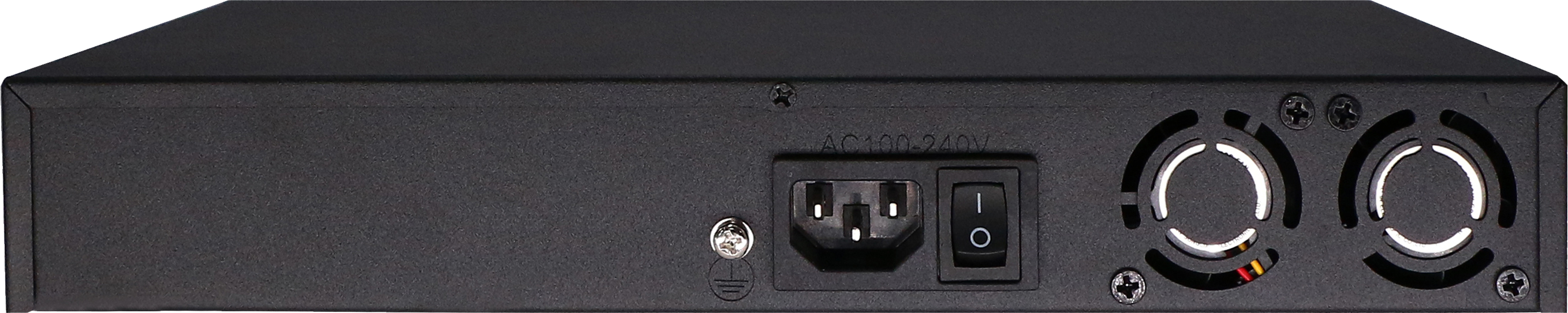

| Total power/Input | MAX 300W?AC100-240V 50/60HZ 4A? |
