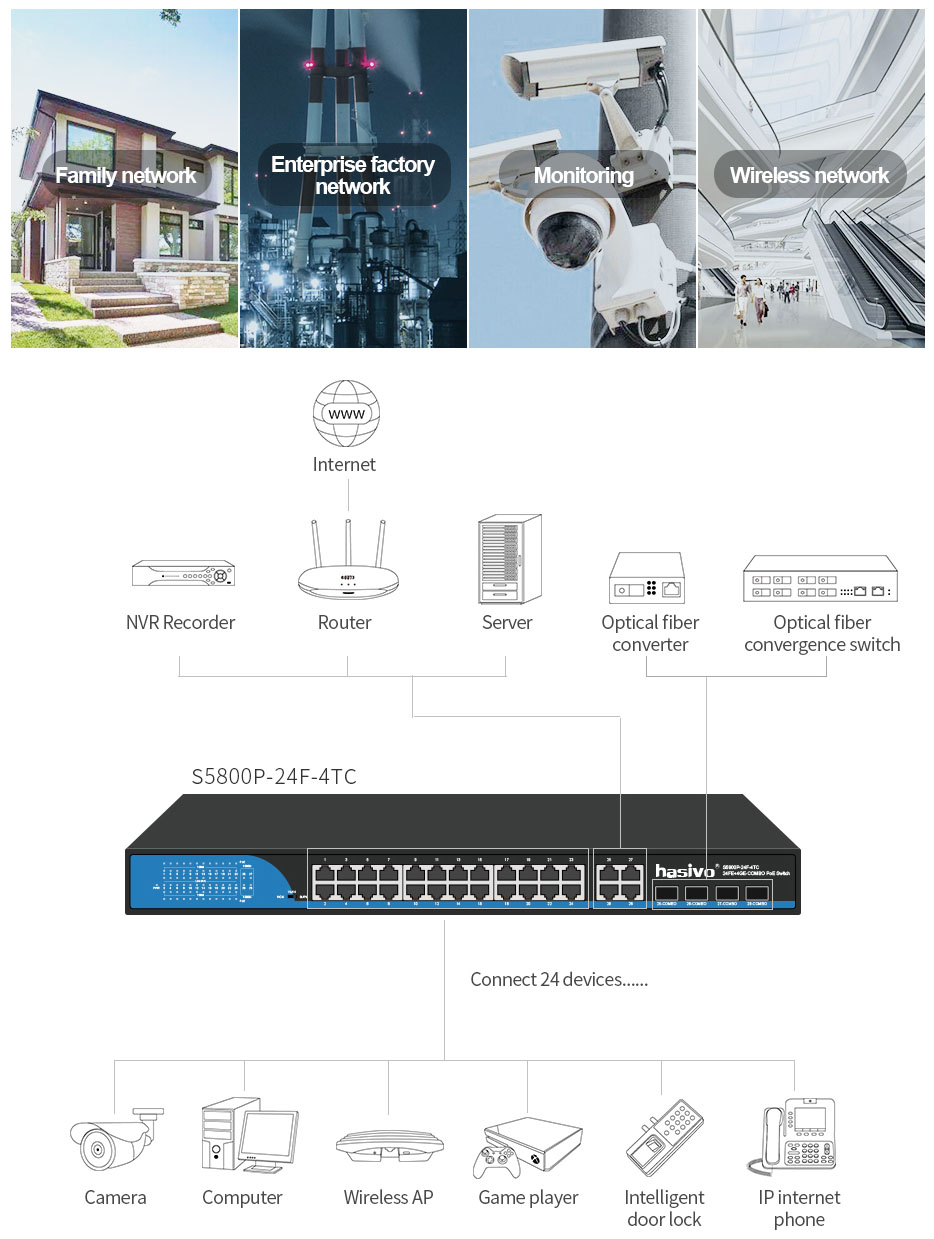

Applications
Specification

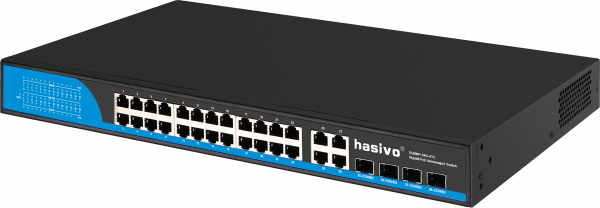

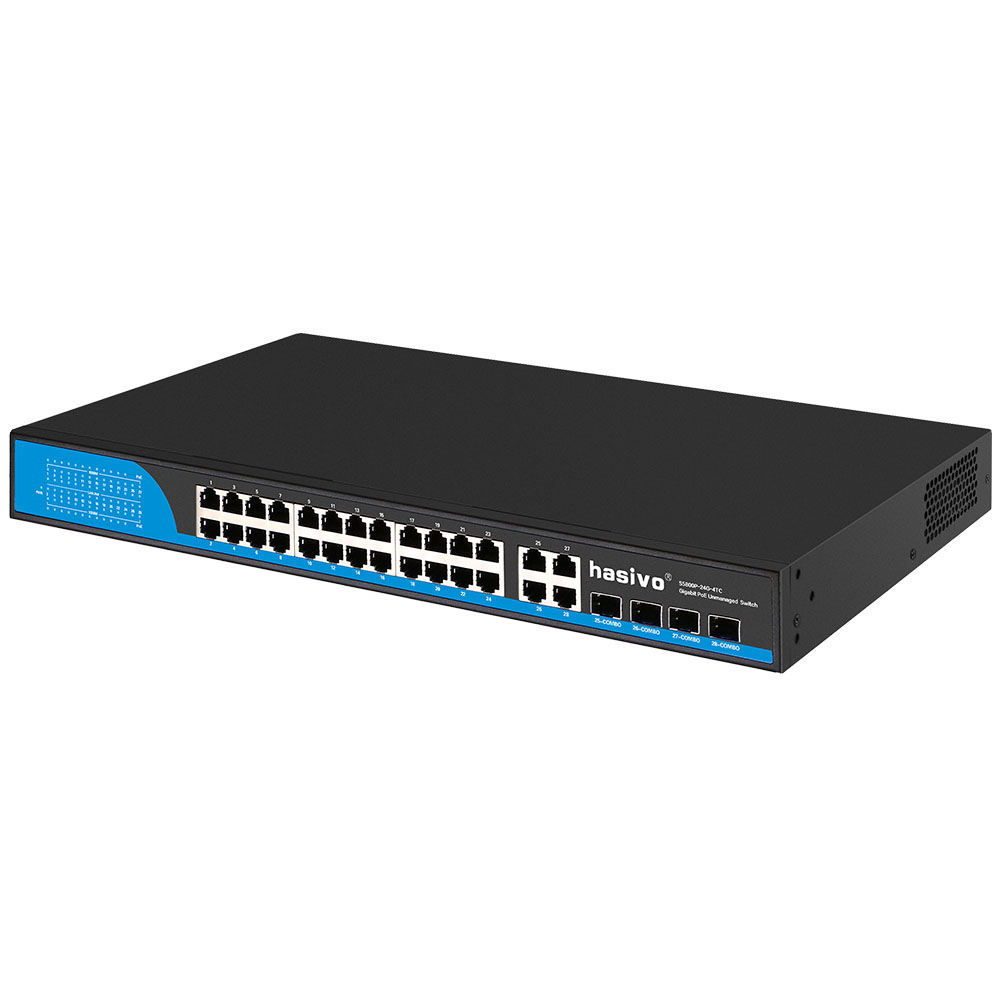

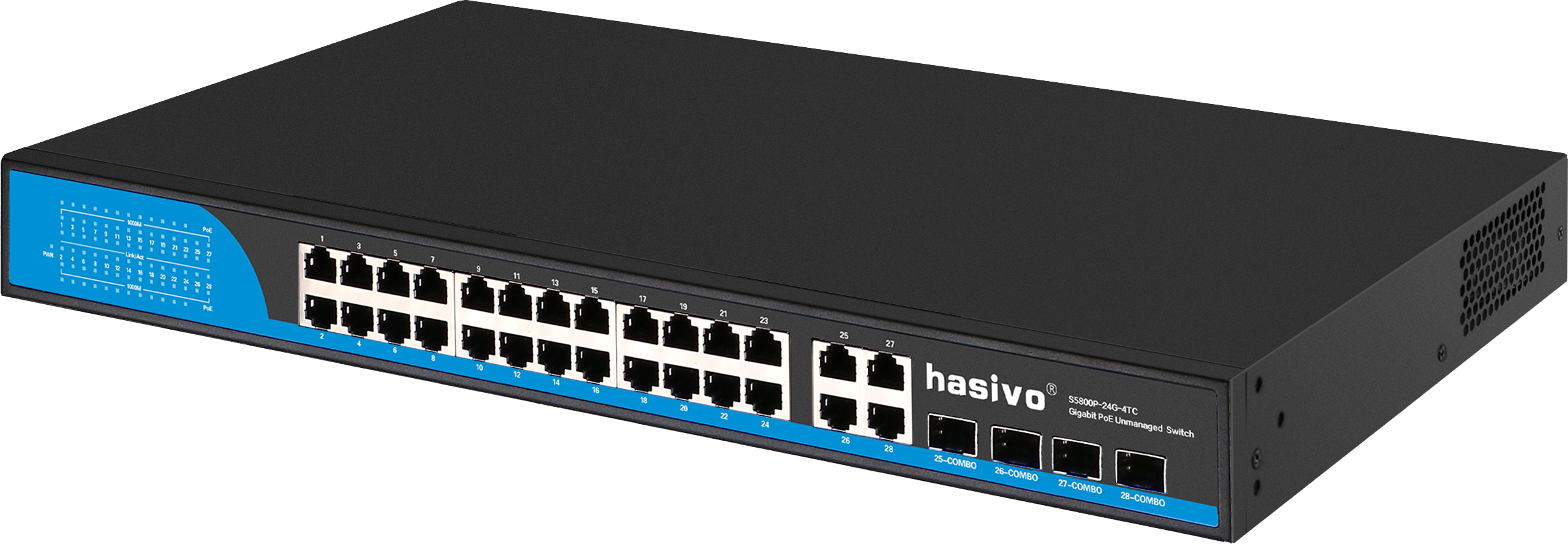

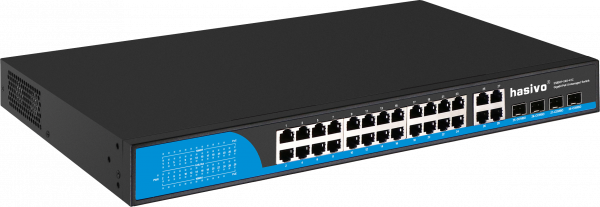

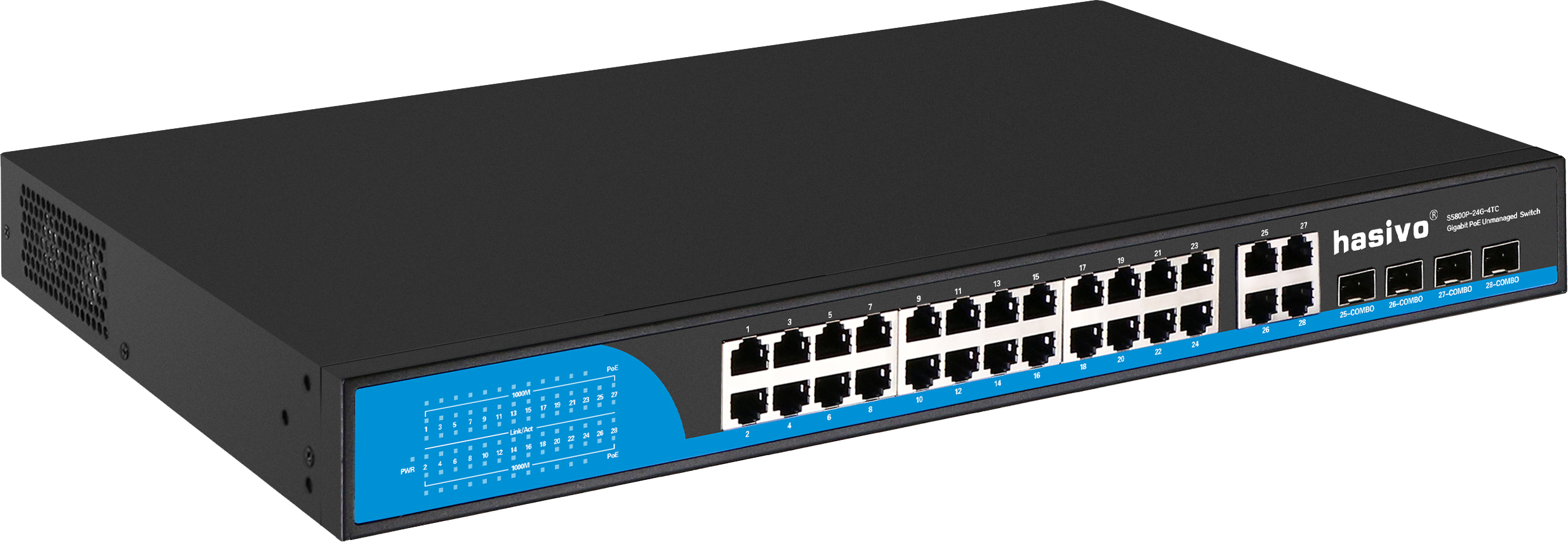

| Model | S5800P-24G-4TC |
| Product | Full Gigabit 24+4 PoE Switch |
| Fixed Port | 24*10/100Base-TX PoE port?Data/Power? 4*10/100/1000Base-TX uplink RJ45 port (Data) 4*1000M SFP |
| PoE Ports | 1-24 port supports PoE?(optional first port outputs HiPoE_60W) |
| Network Protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at |
| PoE Standard | IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT?X?Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 56Gbps |
| Packet Forwarding | 40.32Mpps |
| MAC Address | 8K |
| Buffer | 4.1M |
| Transmission Distance | 10BASE-T ? Cat3,4,5 UTP(?250 meter) 100BASE-TX ? Cat5 or later UTP(150 meter) 1000BASE-TX ? Cat6 or later UTP(150 meter) 1000BASE-SX:62.5?m/50?m MMF(2m~550m) 1000BASE-LX:62.5?m/50?m MM(2m~550m) or 10?m SMF(2m~5000m) |
| Power Pin | Default 1/2(+)?3/6(-)?Optional order 4/5(+)?7/8(-) |
| Single port power | Average 15.4W?MAX 30W |
| Total power/Input voltage | MAX 400W ?AC100-240V 50/60HZ? |
| Watt | Standby Power Consumption??30W? |

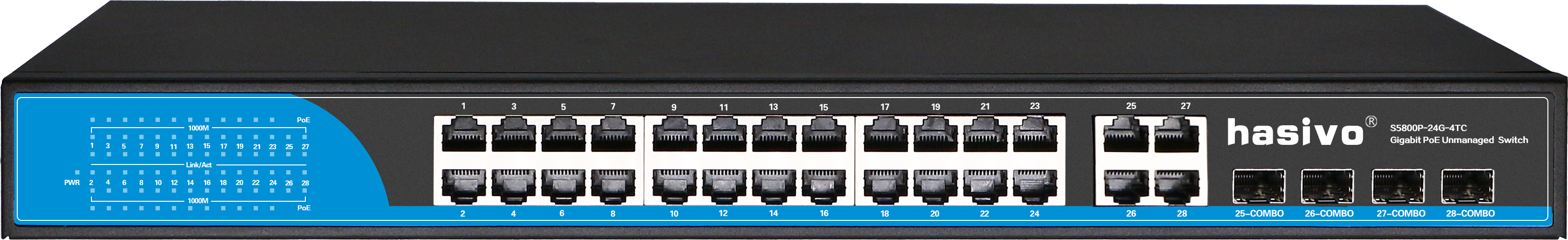

| LED Indicator | PWR:Power LED(optional over-power LED) 1-25:(Link LED=10/100M Link?1000M=Gigabit Link? 26-28:(COMBO LED) |

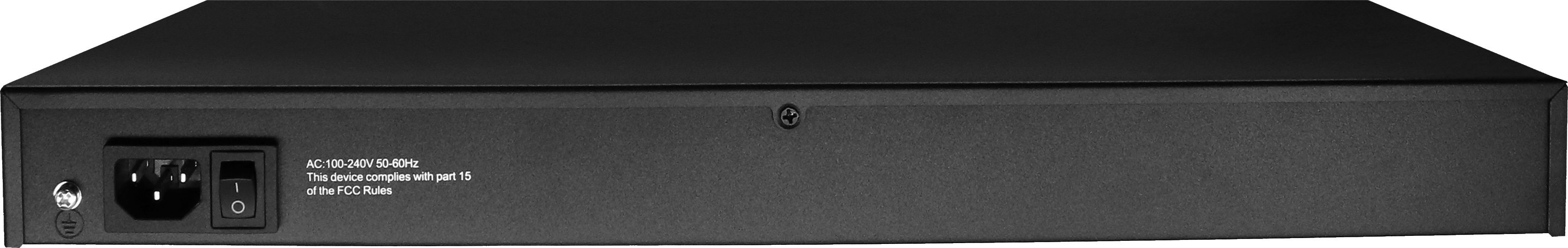

| Power Input | Built-in power AC?100?240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10?+55°C?5%?90% RH Non coagulation |
| Storage Temperature/Humidity | -40?+75°C?5%?95% RH Non coagulation |
| Product size/Packing size?L*W*H) | 440mm*290mm*45mm 515mm*375mm*95mm |
| N.W/G.W?kg? | 3.5kg/4.3kg |
| Installation | Rack-mount(optional machine hanger spare parts ? |
| Lightning protection level | 3KV 8/20us? IP30 |
| Certificate | CE mark, commercial?CE/LVD EN60950? FCC Part 15 Class B?RoHS? |
| Warranty | Whole device for 1 year(Accessories not included) |
